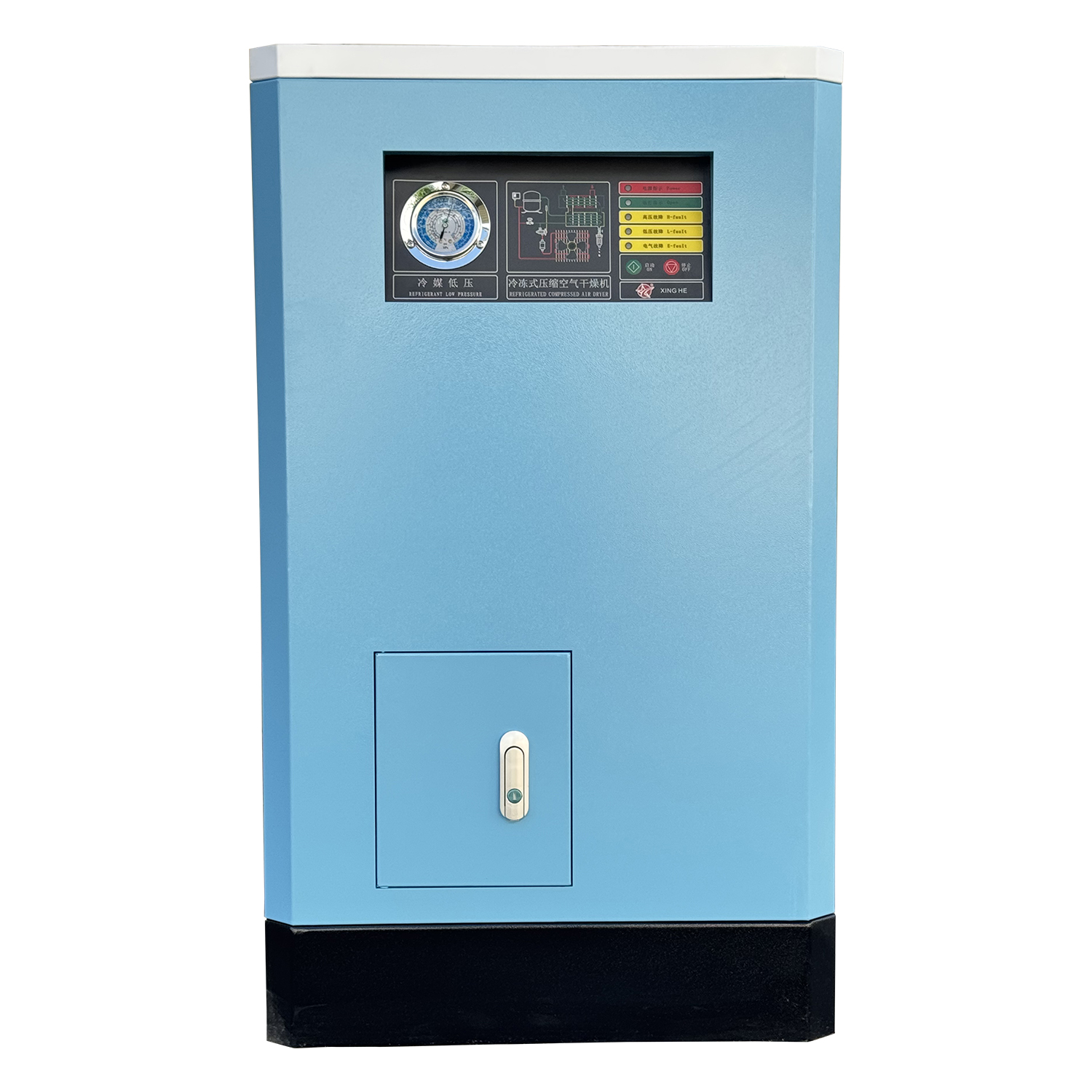

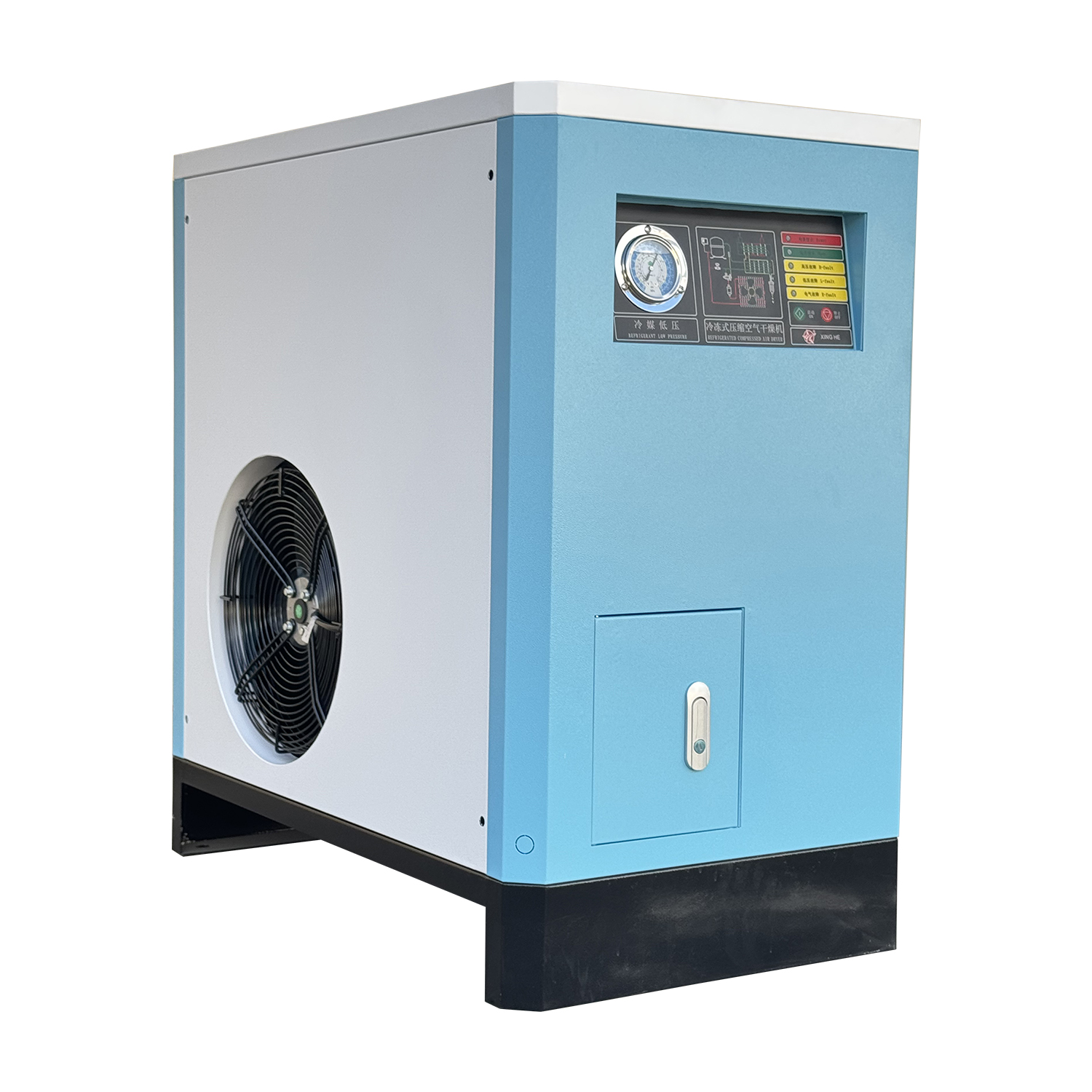

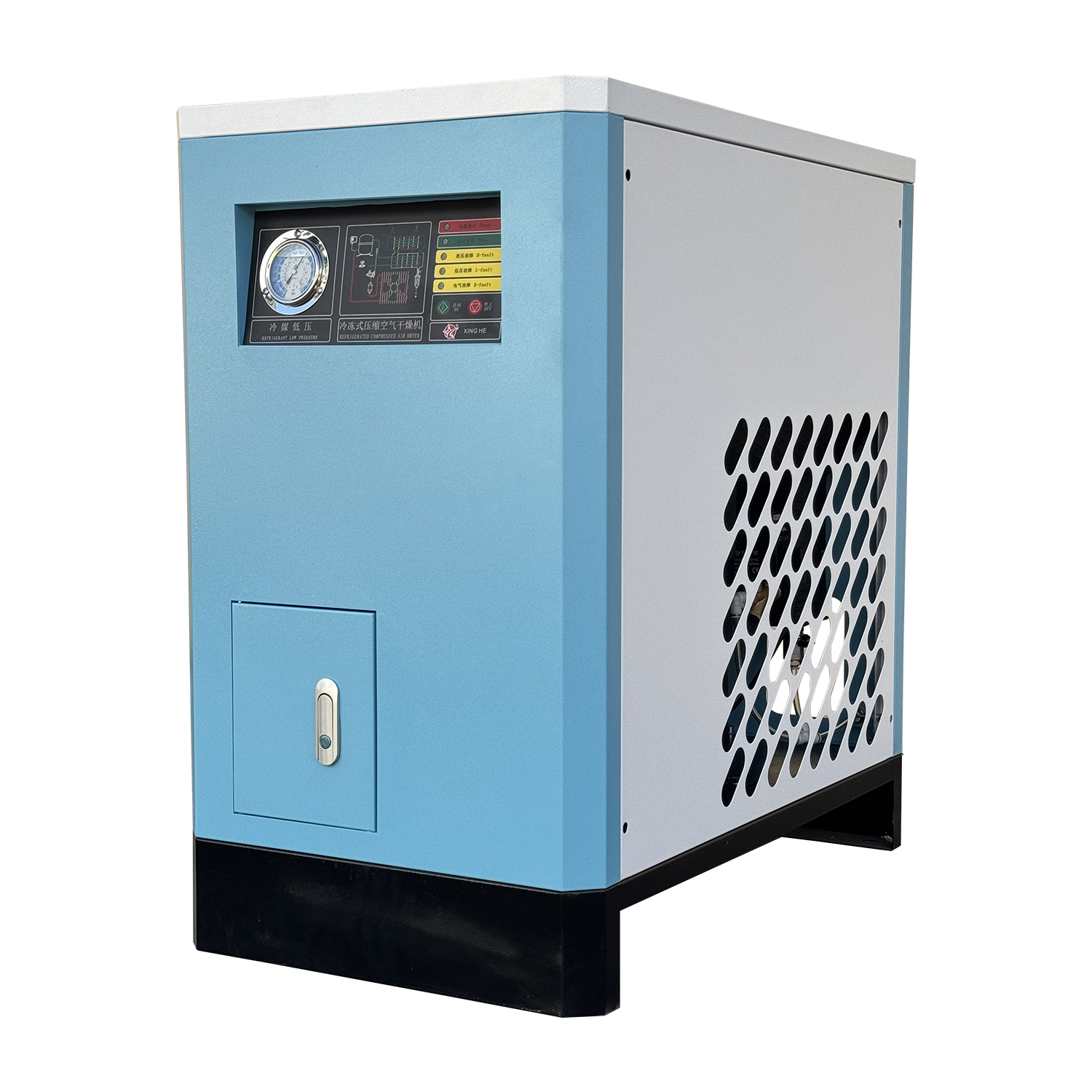

Air-cooled high-temperature refrigerated dryer

Air-cooled high-temperature refrigerated dryer

Product parameters

  Intake air temperature: 10~60℃

  Cooling method: air cooling

  Ambient temperature: 2~40℃

  Pressure dew point: 2~10℃

  Working pressure range: 0.6~1.3Mpa

 Note: Other special standards can be customized, please contact us for more information.

 Features

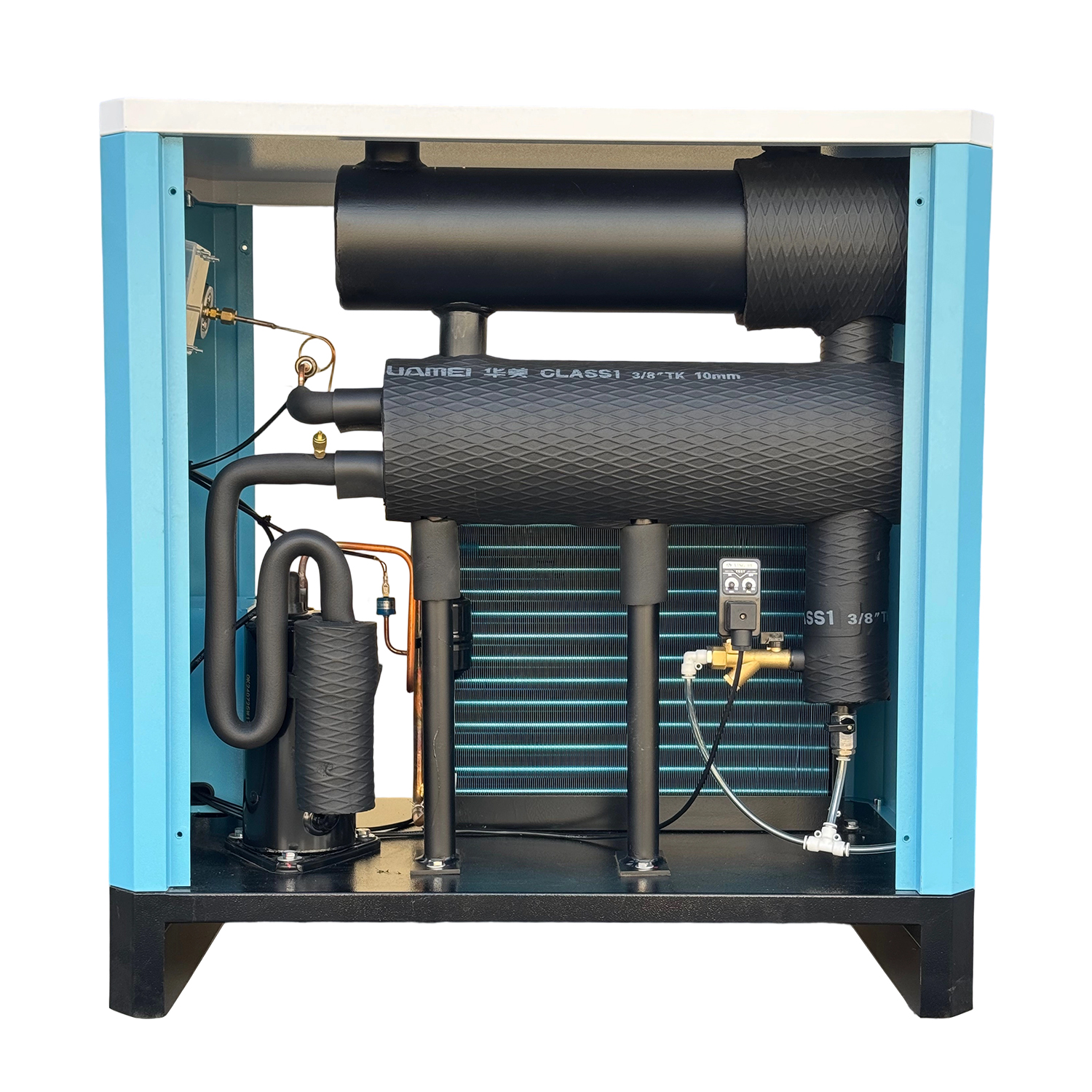

●The gas-water separator adopts a multi-stage separation method: more than 10 cubic meters of shell-and-tube heat exchanger: the gas-liquid separator adopts independently designed "direct collision separation + low-speed centrifugal separation + weight settlement + stainless steel wire mesh mist capture and other fine "Separation" four-stage separation method separates 99.9% of liquid moisture from the cooled compressed air to prevent secondary evaporation of moisture and ensure the low dew point quality of the finished

gas.

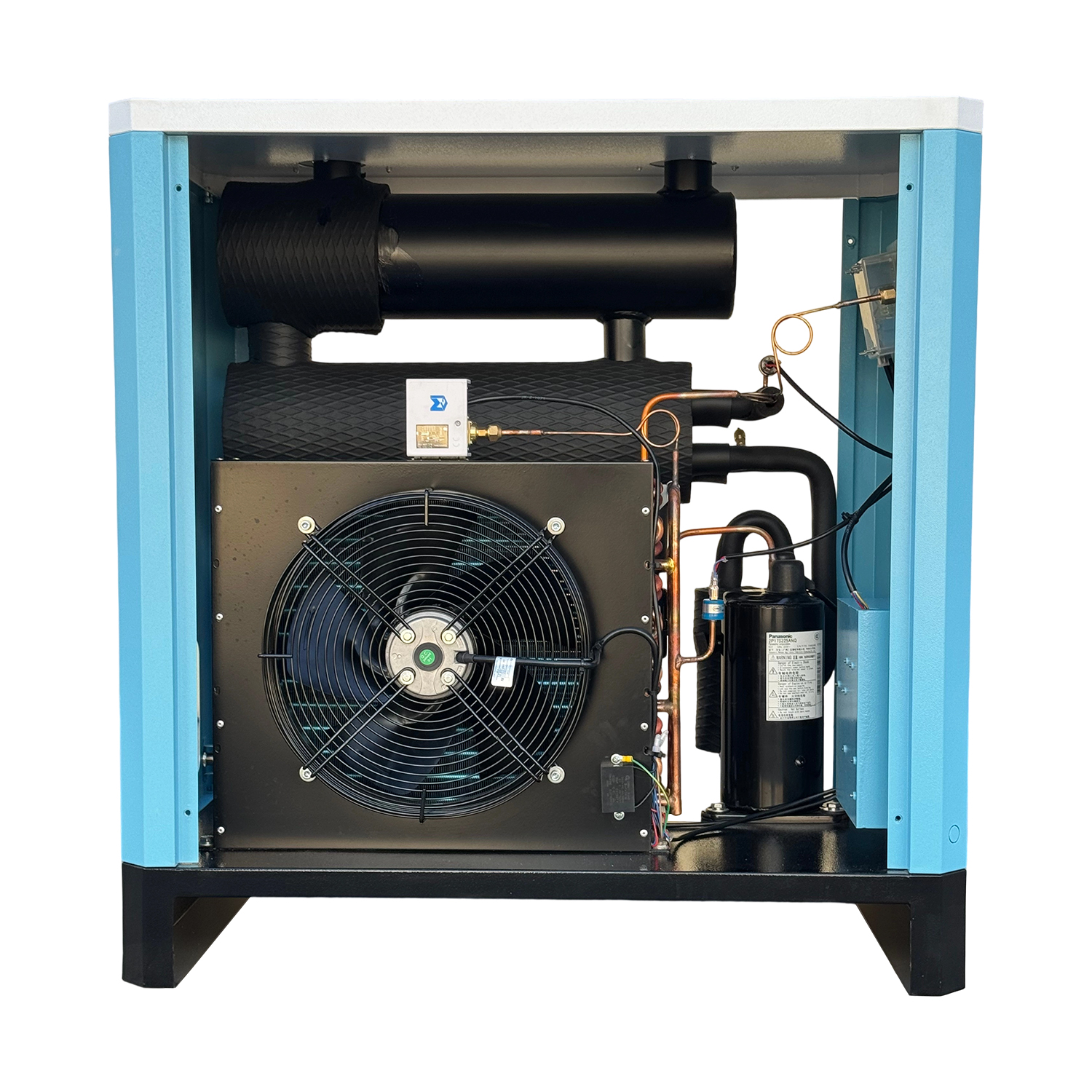

●The heat exchange system is designed using HTFS software: the heat exchanger adopts counter-flow design, which has higher heat transfer efficiency. The evaporator core adopts the structure of expanded copper tubes covered with aluminum fins, and the structure of air condenser micro-channel parallel flow radiator has high heat exchange efficiency and large air volume of the condensing fan,

which increases the heat dissipation effect of the system and ensures long-term high efficiency and stability of the system. run.

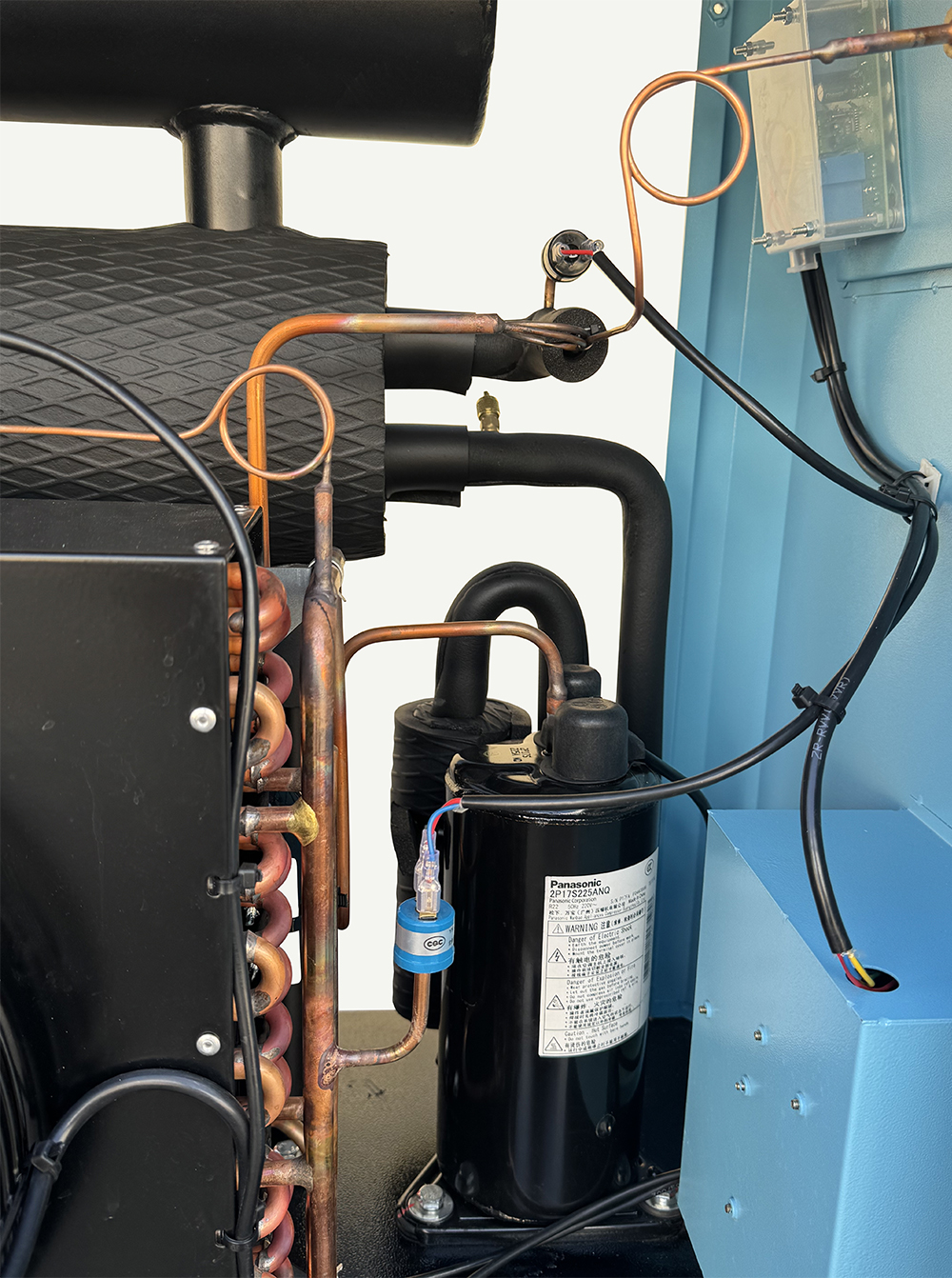

●Multiple protections make the unit safer: the refrigeration compressor has built-in overload protection, refrigerant high and low

pressure protection, under-reverse phase protection, overheating, overcurrent protection, low temperature protection and other

complete and reliable protection system designs. Ensure safer and more stable operation of the unit.
