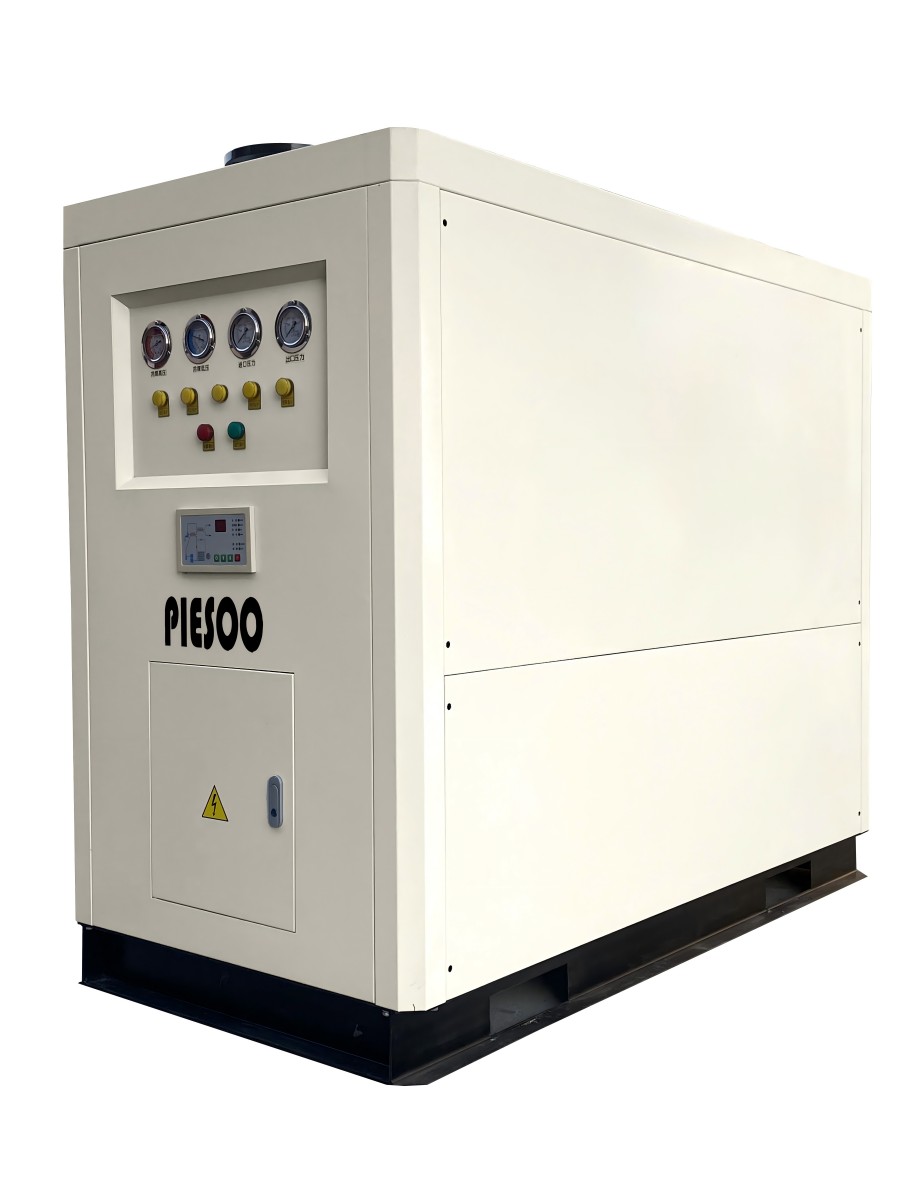

Water-cooled high-temperature refrigerated dryer

Water-cooled high-temperature refrigerated dryer

Product parameters

  Intake air temperature: 10~60℃

  Cooling method: water cooling

  Pressure dew point: 2~10℃

  Working pressure range: 0.6~1.3Mpa

  Cooling water inlet pressure: 0.2~0.4Mpa

  Cooling water inlet temperature: 2~32℃

  Cooling water quality: industrial circulating soft water

Note: Other special standards can be customized, please contact us for more information.

 Features

●Strictly carry out design, manufacturing, production and testing in accordance with ISO9001, GB150 standards, IS07183 cold dryer

standards, QS, and pressure vessel inspection specifications to ensure product safety and reliable operation.

●The water-cooled condenser uses high-efficiency heat exchange copper tubes, which are small in size and high in heat exchange

efficiency. No foundation installation, suitable for operation in closed and high ambient temperatures. Refrigeration parts and control

components are all made of international high-quality brands to extend their service life. Using a new fully enclosed refrigeration

compressor, it has long life, low noise, reliable performance and high energy efficiency.

●The equipment structure is reasonably designed and adopts the golden ratio design concept to create a strong structural

three-dimensional sense. The high-efficiency air-water separation device and the excellent automatic drain valve continuously and

stably drain the condensed water out of the machine. Good drainage system design, no clogging, with filter that can be cleaned

regularly. Unique refrigeration system design: low temperature and no freezing, good refrigerant filtration system, no ice blockage;

effectively removes moisture from compressed air.
